HLF

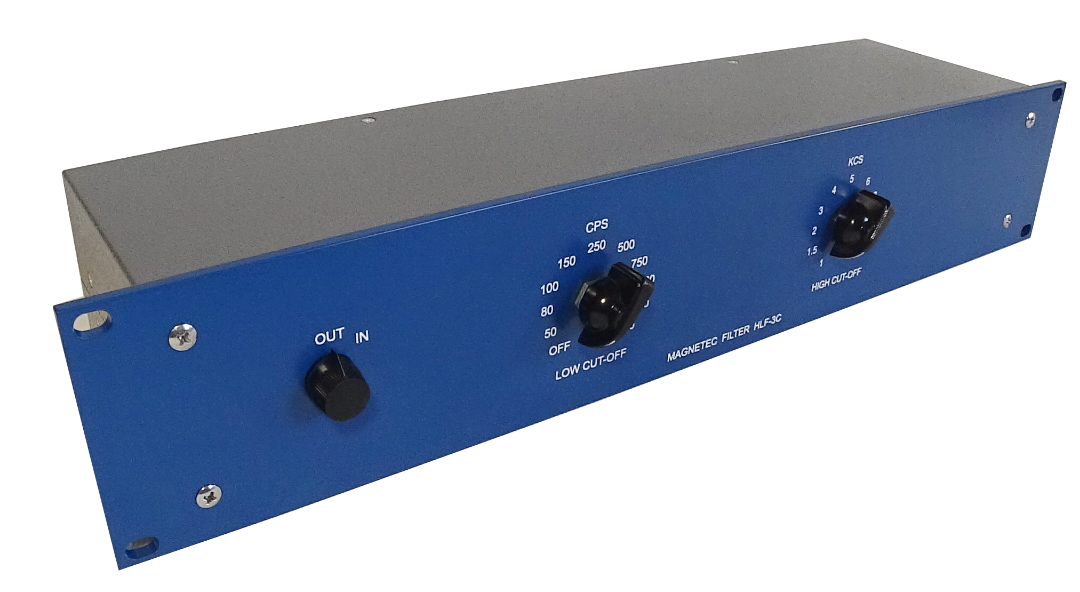

• Equalizer Magnetec HLF-3c (clone Pultec HLF-3c)

• Standard version: CPS, KCs are stepped switches.

• Color is RAL 5001 green blue

• Low cut-off: 11 position- OFF, 50, 80, 100, 150, 250, 500, 750, 1000, 1500, 2000 cps

• High cut-off: 11 position- 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12 kcs and OFF.

• In-Out key: permits cutting the filter in and out on cue.

• Impendans 500-600 ohm, balanced XLR input and output.

• Insertion Loss: -6dB

• Level: 20cps +6dbu max

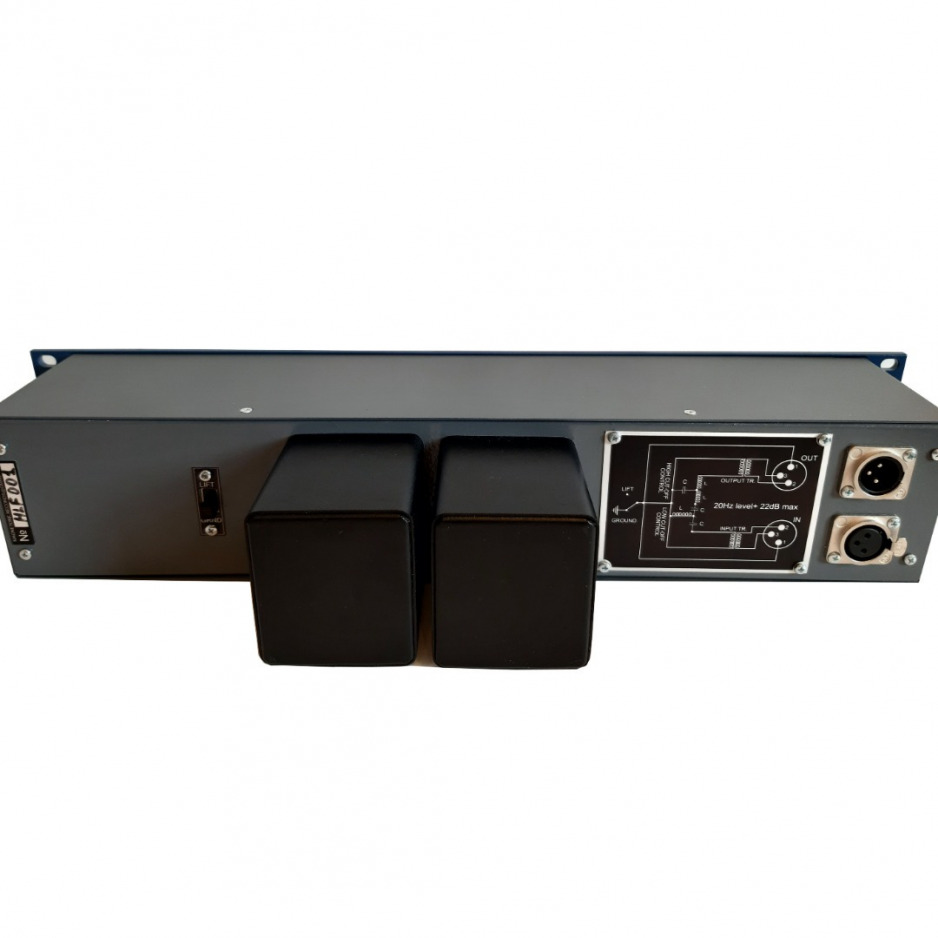

• Balanced XLR inputs and outputs

• Format: 19 "/ 2 U

• Depth: 175 mm

• Weight: 3.2 kg
