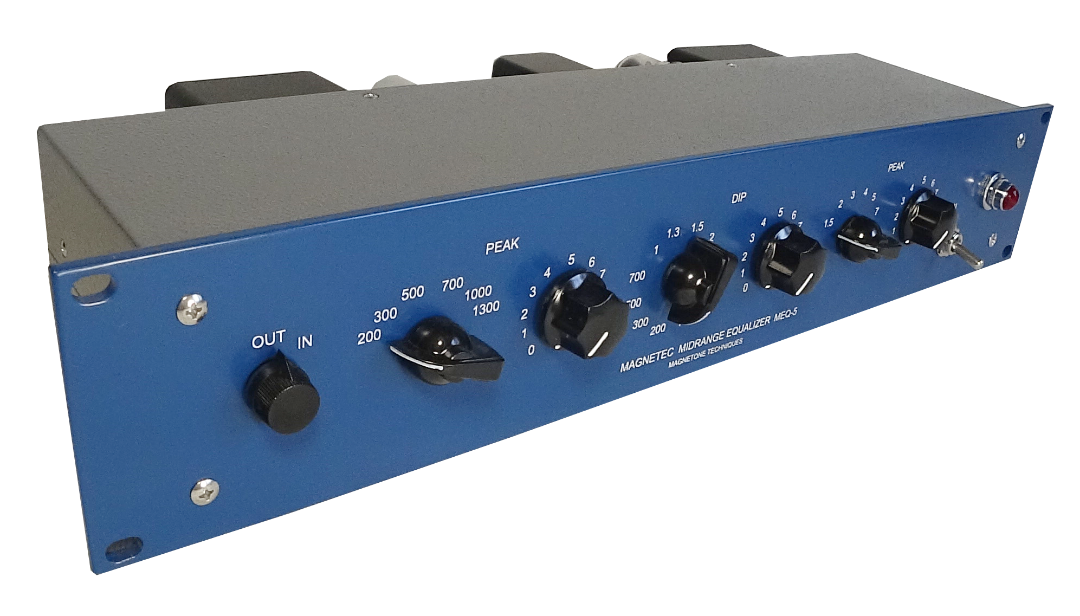

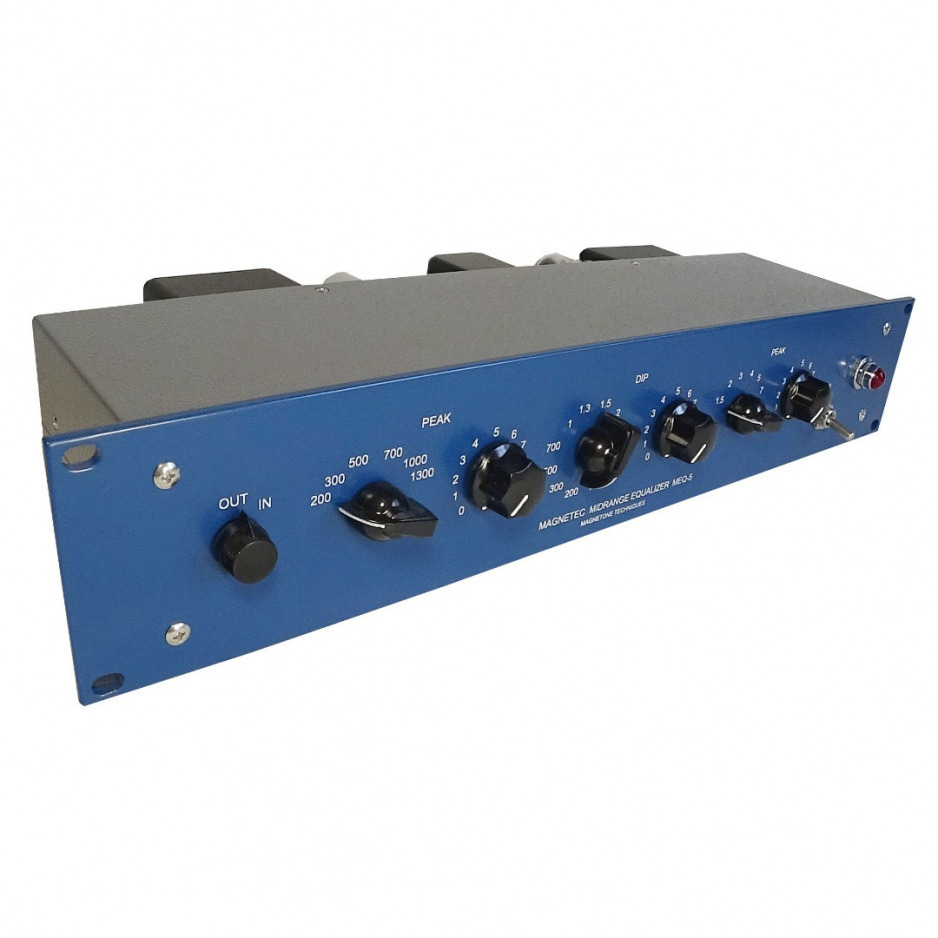

Tube Equalizer MEQ-5 Magnetec (clone MEQ-5 Pultec)
Standard version: LOW, MID, HIGHT are stepped switches, BOOST, ATTEN, are potentiometers.
Color is RAL 5001 green blue
The amplifier is assembled with 6N3P-EV(6Н3П-ЕВ)
Hight Boost -1.5kHz, 2kHz, 3kHz, 4kHz, 5kHz, 7kHz. +21dB gain
Mid Cut -200 Hz, 300Hz,500Hz,700Hz, 1kHz, 1,3kHz, 1.5kHz, 2kHz, 3kHz, 4kHz, 5kHz, 7kHz. -21dB gain
Low Boost 200 Hz, 300 Hz, 500 Hz, 700 Hz, 1000 Hz, 1300 Hz +17dB gain
Termal noise level =200 Ohm (22Hz - 20kHz) <-75dBU

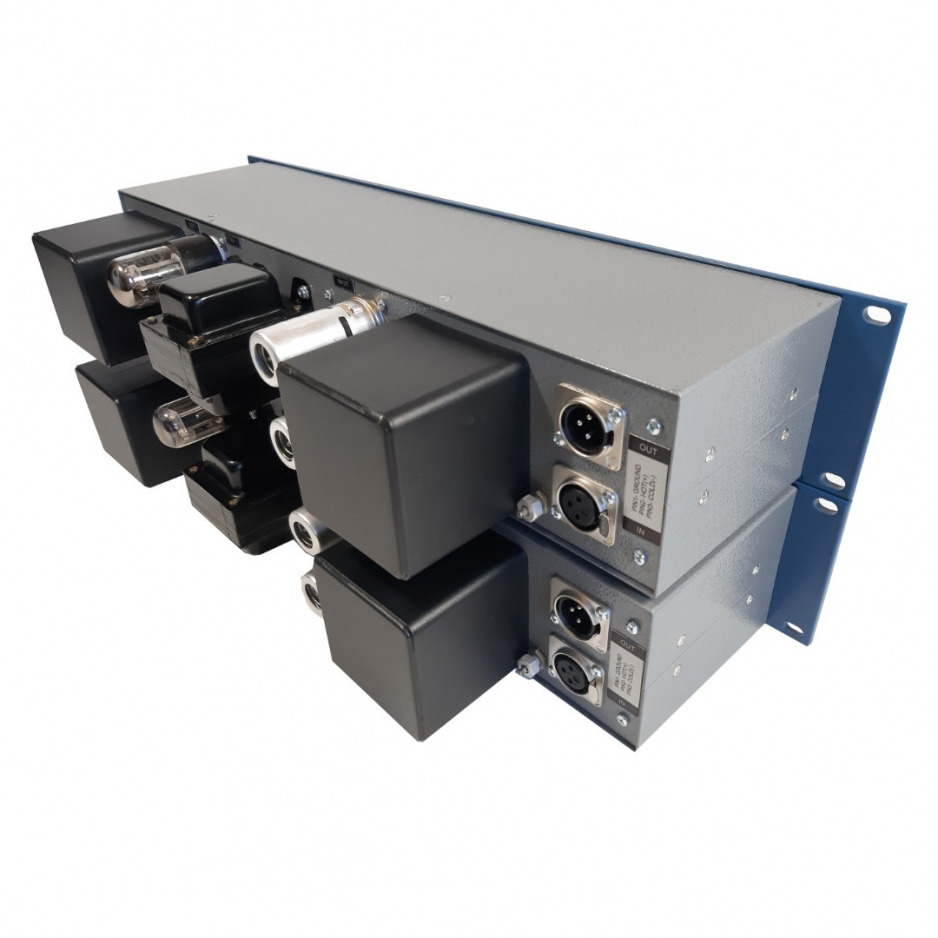

Balanced XLR inputs and outputs
Format: 19 "/ 2 U
Depth: 175 mm
Weight: 5.7 kg
